Tips for Using TTO Wax-Resin Ribbons in Packaging

Understanding Wax-Resin Thermal Transfer Ribbons and Their Role in Packaging

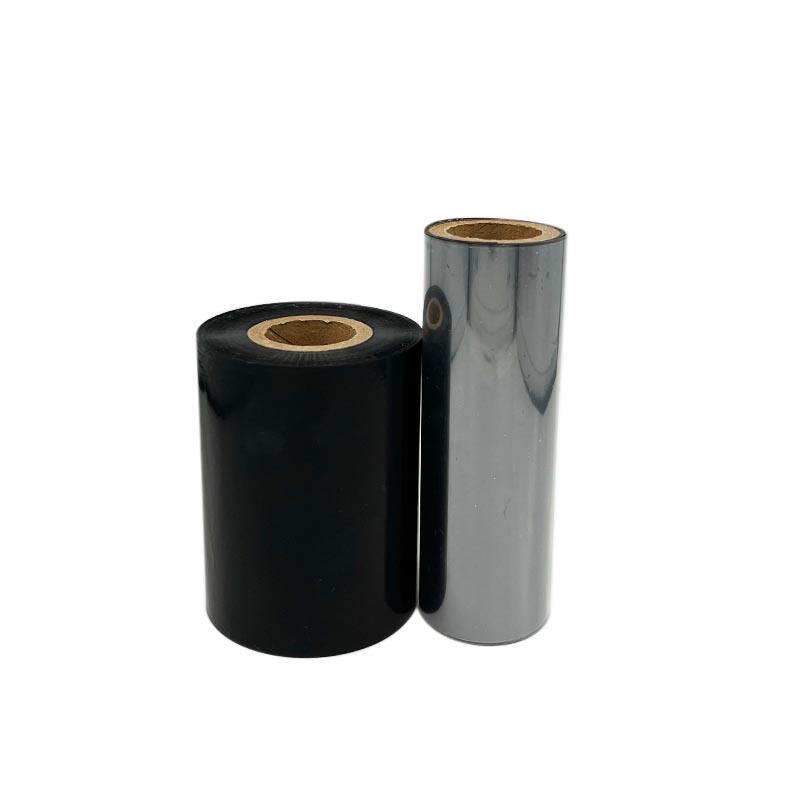

What Are Wax-Resin Thermal Transfer Ribbons?

Thermal transfer ribbons made from wax and resin mixtures typically contain around 60 to 70 percent wax mixed with about 30 to 40 percent resin. This combination gives us something in between regular wax ribbons and pure resin ones, offering both good flexibility when needed but still holding up pretty well over time. When we apply heat to these ribbons during printing, they melt just enough to stick images onto various materials like plastic packaging films, metal foils, and different kinds of laminates. That makes them really useful for things like barcode labels, date stamps on products, and those small batch number tags manufacturers always need. Looking at recent market data from early 2024 shows wax resin blends taking about 47.2% share of the Asia Pacific region market. Why? Well besides being cheaper than some alternatives, they work great with fast moving production lines where speed matters most.

Applications of Wax-Resin Ribbons in Packaging Across Industries

Wax-resin ribbons deliver reliable prints on flexible substrates like PET and polypropylene, serving critical roles across industries:

• Food & Beverage: Printing NSF/ISO-compliant labels that resist condensation in cold storage environments
• Logistics: Generating scannable tracking codes resilient to handling abrasion
• Retail: Producing smudge-proof price tags on glossy packaging films

Manufacturers frequently choose these ribbons for applications requiring up to 18 months of durability, where full-resin options would be unnecessarily expensive.

How Wax-Resin Ribbon Performance Compares to Pure Wax and Resin Options

Wax-resin ribbons offer 3–5 times greater scratch resistance than pure wax alternatives while maintaining approximately 20% lower material costs compared to full-resin formulations. This balance makes them particularly well-suited for packaging lines needing moderate durability without sacrificing throughput in inline TTO systems.

Optimizing Printer Settings for High-Speed TTO Printing with Wax-Resin Ribbons

Key Challenges in High-Speed Inline (TTO) Printing Environments

Thermal Transfer Overprinting at high speeds requires careful management of several factors including temperature settings, what kind of material is being printed on, and how tight the ribbon stays during operation. According to research published last year in thermal printing journals, about one third of all printhead problems come down to incorrect heating levels. Another quarter happen because people try to print ribbons designed for one surface type onto completely different materials. When machines run faster than 12 meters per minute, getting good adhesion gets really tricky with smooth surfaces such as polyethylene plastics. And then there's static electricity issues too - especially when workshops get too dry. This causes all sorts of headaches with ribbons jumping off track and barcodes coming out incomplete or missing altogether.

Heat, Density, and Speed: Balancing Print Clarity and Throughput

Achieving optimal results requires fine-tuning printer settings based on substrate type:

Higher density settings enhance chemical resistance—critical for pharmaceutical blister packs—but reduce ribbon yield by 15–20%. For frozen food packaging, maintain temperatures ≥80°C to ensure proper adhesion on condensation-prone surfaces without degrading ribbon integrity.

Common Issues from Incorrect Settings and How to Fix Them

When expiration dates get smudged, it usually means things got too hot around 85 degrees Celsius or higher. At that point, the wax resin starts to break down since it can't handle tension beyond about 450 grams per square centimeter. To fix this issue, drop the temperature gradually in five degree steps while keeping an eye on how well the ink transfers onto surfaces. Barcodes that are only 10 mil thick but still won't scan properly? Try bumping up the print density setting just one notch and double check if the ribbon actually complies with those ASTM F2389 wear tests for whatever material we're printing on. And remember, if ribbons keep breaking when running faster than ten meters per minute, most likely we need to adjust the tension somewhere between 2.5 and 3 Newtons. Also important to maintain proper workshop conditions with humidity levels staying within that sweet spot of forty to sixty percent.

Achieving Durable and High-Quality Prints on Flexible Packaging Materials

Printing with Wax-Resin Ribbons on Films, Foils, and Laminates

Wax resin ribbons work really well on flexible materials like polyethylene films and aluminum foil because they stick just right without being too aggressive. Their mixed makeup helps transfer ink consistently across all sorts of surfaces, including those that aren't flat or smooth. This makes them great for things like snack packaging and shrink sleeve labels where print quality matters most. For best results, most people find that 4.5 micrometer thick ribbons work best when used with printheads set between 33 and 38 degrees Celsius. This temperature range is pretty standard in the industry and stops ink from smearing on those sensitive laminate materials that react badly to excess moisture.

Resistance to Abrasion, Chemicals, and Environmental Stressors

A 2023 Smithers study showed wax-resin prints retain 92% legibility after 500 friction cycles—23% better than pure wax. This performance is driven by:

• Resin-rich top layers providing resistance to ethanol-based sanitizers used in pharmaceutical packaging
• Flexible wax underlayers minimizing cracking during thermal shocks from freezer to oven

However, prolonged UV exposure (>800 hours) leads to fading, so resin-coated variants are recommended for outdoor retail displays.

Case Study: Enhancing Barcode Legibility on Snack Food Pouches

One big name in snacks saw their scanning issues drop by almost three quarters when they made the switch to wax-resin ribbons for those oily chip packages. What worked so well was the 65% resin mix that stood up against oil seeping through, beating regular wax options hands down. Plus these ribbons still worked great on those super fast packaging machines that can crank out 200 bags every minute. And here's something interesting: the GS1 certified barcodes kept looking good too, staying under that critical 0.55 reflectance threshold even after sitting on store shelves for nine whole months. That kind of consistency makes all the difference at checkout counters everywhere.

Debating Durability: Are Wax-Resin Ribbons Suitable for Long Shelf Life?

While wax-resin ribbons support shelf lives of 6–18 months under moderate conditions, aggressive environments—such as citrus packaging (pH <3.5)—still require full-resin solutions. Data from a 2024 ISTA transport simulation highlights performance differences:

For non-reactive products like dry grains and cosmetics, wax-resin offers cost-effective durability without compromising production speed.

Selecting the Right Wax-Resin Ribbon for Your Packaging Substrate

Matching Ribbon Formulations to Specific Films and Coatings

In the Asia-Pacific region, wax-resin ribbons hold about 47% of the market share because they work well with so many different kinds of packaging materials. Getting good results really comes down to matching the ribbon mix with what it's going onto. For example, when printing on polyester films, manufacturers tend to go for ribbons with more resin since these materials need extra protection against chemicals. But if the package is made of polyethylene, then a wax-based ribbon usually gives better performance. According to findings from China's National Technical Committee, around 55% of medium sized factories focus heavily on finding this right balance between wax and resin content. This approach helps them create durable packaging at reasonable costs for things like electronic gadgets and everyday consumer products sold throughout the region.

Evaluating Compatibility with Common Packaging Substrates

To check if ribbons work well with different substrates, run peel strength tests along with accelerated aging simulations first. When dealing with cold chain logistics, make sure materials perform reliably at temperatures below minus 18 degrees Celsius. Products containing oils need special attention too since they require testing against lipid penetration risks. Recent market research from 2024 shows around two thirds of all smudging problems come down to mismatched ribbon coating pairs. Never rely solely on what's written in manufacturer specs sheets though. Real world conditions matter just as much, especially when considering things like extreme humidity levels or the kind of mechanical stresses packages endure during shipping and handling.

Maximizing Efficiency and Compliance in Food & Beverage Packaging Lines

Meeting Operational and Regulatory Demands in Food Safety

The FDA and EPA have pretty strict rules when it comes to making sure labels are accurate and materials are safe for consumers. Looking at recent data from the industry sector in 2024, around three quarters of all food product recalls were traced back to mistakes on packaging information or potential contamination issues. This highlights why companies need to stick with wax resin ribbons that meet those current Good Manufacturing Practices standards we all know as cGMP. Thermal transfer overprint systems that use these approved formulations help keep chemicals from migrating into products during storage. Plus they create prints that hold up through cold chain logistics and long distribution periods without fading or smudging, which is critical for maintaining brand integrity and consumer trust.

Best Practices for Direct-Contact and Cold-Chain Labeling Applications

For direct-food-contact labels or freezer-grade adhesion, wax-resin ribbons perform reliably between -40°F and 140°F. Recommended protocols include:

• Pre-testing ribbons on actual production-line substrates
• Maintaining 30–40% relative humidity in printing zones
• Using 0.25–0.35 N/m² ribbon tension to prevent wrinkling at high speeds

These practices help sustain print integrity in demanding environments like chilled distribution networks.

Reducing Waste and Maintenance Costs in Continuous TTO Operations

Predictive maintenance and automated ribbon-saving technologies can reduce operational costs by 18–22% annually. One leading snack manufacturer cut ribbon waste by 37% through:

1. Dynamic adjustment of print darkness based on substrate color
2. RFID-enabled spool tracking
3. Scheduled printhead cleaning during changeovers

Centralized monitoring systems that correlate ribbon usage with output help maintain less than 2% material variance across shifts, supporting compliance and efficiency without slowing production.

FAQ

What are wax-resin thermal transfer ribbons typically made of?

They are usually composed of around 60-70% wax and 30-40% resin.

What industries commonly use wax-resin ribbons?

Industries like Food & Beverage, Logistics, and Retail frequently use these ribbons for their flexibility and durability.

How do wax-resin ribbons compare to pure wax and resin options?

They provide a balance between cost, chemical resistance, and maximum print speed, offering moderate durability and typically lower costs than full-resin ribbons.

What are some best practices for using wax-resin ribbons efficiently?

It's important to pre-test ribbons on production-line substrates, maintain proper humidity levels, and use precise ribbon tension to avoid issues like smudging and ribbon breaking.
